Stamping die for EI,U,F customized lamination sheets , inverter power electronic transformer C
type iron core
Motor stator and rotor Stampings
We can manufacture laminations in all grades of silicon steel including fully or semi processed steel in the form of Stators & Rotors, Field & Armatures in loose as well as Interlocked & Auto Riveting Cores, AC/DC motor stator and rotor, induction motor stator, brushless motor stator and rotor, stepper motor stator and rotor,SR motor stator and rotor, PM motor stator and rotor, universinal motor stator and rotor, etc.
Dimensions of EI,Stator and rotor core lamination tooling.with riveting or no riveting,You make stamping ,die here.If the production sheets quantity is no so much.Like some custom-made eltrical stator and rotor core.We also could punch the cores for you too.
METS Precision-Tool uses a variety of 2D and 3D cad/cam Software to develop, design, and plan the layout of our dies. (see below for the full software list & details). We have the resources to build a die for any application. When high volumes of production are expected, we can build a dependable tool with longevity in mind. We can also produce low-cost tools for prototyping and sampling applications. Die protection is always on our mind, and DACO Precision-Tool can build in sensors that will help prevent costly damage to the die.

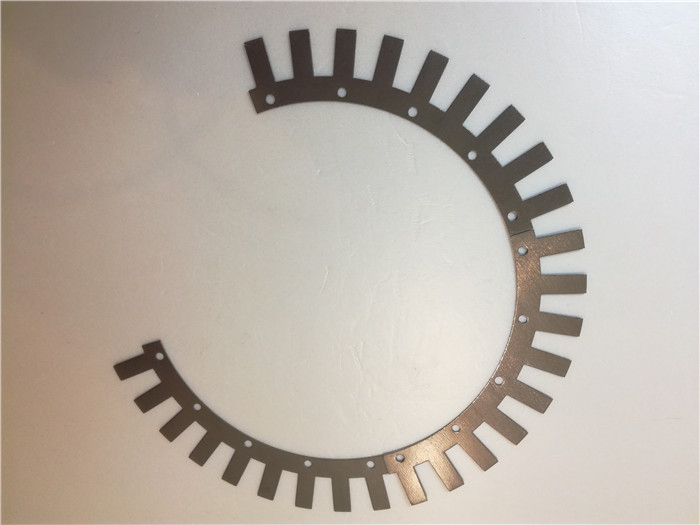

Stator and rotor core profile
| Part thickness | 0.35-0.5-0.65mm |
| Product Name | Stamping motor core stator , rotor,lamination sheets |
| Part material | Silicon steel |
| Grade | B35A300,B50A470,M530-65A,B50A600,B50A800 .M270-50A,M530-65A,M800-50A,50CS1300, 50CS800, 50CS600, 50CS470, 35CS550steel,copper,aluminum |
| Die type | Interlocked Progressive die ,Auto riveting progressive tool, stamping die,compound die, ect. |
| cavity | Single / Multi per request |
| Stacking | loose sheets,or Auto interlocked Stacking |
| Die material | YG15,YG20,DC53, SKH-9, SKH51, SKD11,D2, |
| Die use | Water pump, Industrial motor, Fan motor, Generator, Compressor and Car...etc. |
| Machinery Equipment | Milling, Grinding, Boring, CNC, EDM, WEDM, Forming Machine, Precision flat milling, Saw machine, Punching machine, |
| Die precision | High precision machining, minimum 0.003mm |
| Trial out press | 25~160T |
| First trial sample | 5-10 sets free
|
We accept your any request on shipment.By air, by sea,and by Express are acceptable.
| | By Express | By Air | By Sea |
| West Europe | 3-5 days | 4-6 days | 22-30days |
| USA &Canada | 3-4days | 5-6 days | 16-27days |
| South Asia | 3-5 days | 3-7 days | 12-20 days |
| Japan&South Korea | 2-3 days | 3-4 days | 10-13 days |
| Russia | -------- | --------- | 30-40 days
|
Packing:
First Step Wrapping by PE film to anti-rust.
Second wooden case without need of fumigation.Or as your required.
FAQ
1.Q: Are you a factory or trading company?
A: We are a factory,a professional metal stamping die and hardware stamping manufactuer.
2.Q: Where is your factory located? How can I visit there?
A: Our factory is located in Xiamen, Fujian Province, China,We warmly welcome all our clients, from home or abroad, to visit us!
3.Q: What is the material of your tooling?
A: The material are D2,YG15,DC53,SKD11,D2,SKH-9,SKH-51
4.Q: The maximum press your fatory have available ?
A: There are 25T,35T,45T,60T,80T,110T,160T punching machines in our factory.
5.Q: What about the machines of your factory?
A: Our factory owns a full set of Machining equipment, include large CNC machning center,Sodic EDM machning,import EDM-HS,Radial drilling machines,Milling machines,Grinders,three-D inspection etc.
6.Q: How does your factory do regarding quality control?
A: Quality is priority. METS people always attach great importance to quality controlling from the very beginning to the very end. All the moulds,the QC measure with three-D measuring equipments regularly.

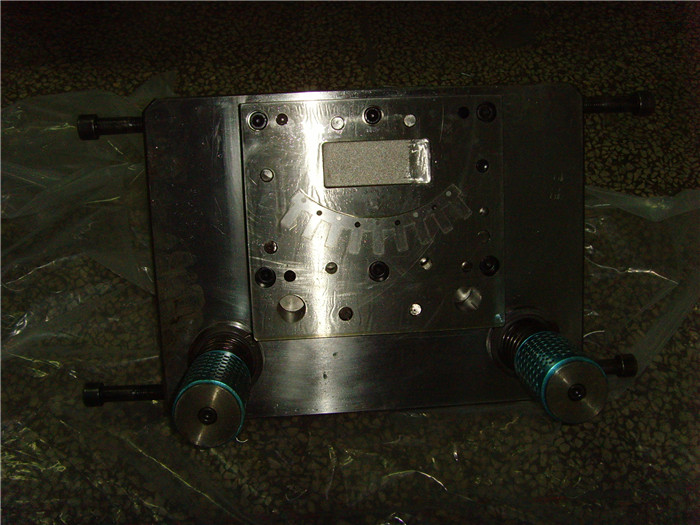

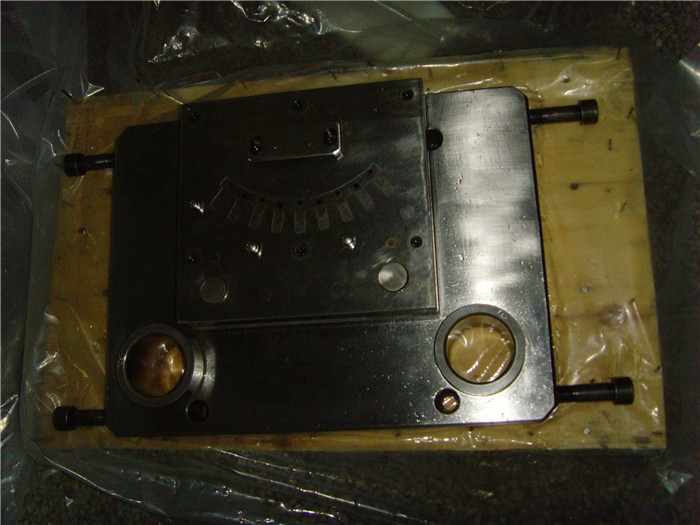

Stamping die Shows:
